IntelliVue MP2 Monitor / X2 Module M8023A Power Supply Module REF 865122 For New And Original
IntelliVue MP2 Monitor / X2 Module M8023A Power Supply Module REF 865122 For New And Original IntelliVue MP2 Monitor / X2 Module M8023A Power Supply Module REF 865122 For New And Original IntelliVue MP2 Monitor / X2 Module M8023A Power Supply Module REF 865122 For New And Original IntelliVue MP2 Monitor / X2 Module M8023A Power Supply Module REF 865122 For New And Original IntelliVue MP2 Monitor / X2 Module M8023A Power Supply Module REF 865122 For New And Original

IntelliVue MP2 Monitor / X2 Module M8023A Power Supply Module REF 865122 For New And Original

جزئیات محصول:
نام تجاری: IntelliVue
شماره مدل: MP2/X2
پرداخت:
مقدار حداقل تعداد سفارش: 1
قیمت: قابل مذاکره
جزئیات بسته بندی: پکیج معمولی
زمان تحویل: 1-2 روز
شرایط پرداخت: T/T، وسترن یونیون، پی پال
قابلیت ارائه: 30
اکنون تماس بگیرید
  • اطلاعات تکمیلی
  • توضیحات محصول

اطلاعات تکمیلی
رنگ: خاکستری شماره مدل: MP2
وضعیت: در شرایط جدید شرایط: در کار خوب
نام تجاری سازگار: PH روش حمل و نقل: تحویل سریع
شرایط حمل و نقل: DHL، EMS، UPS، ACS و غیره محصول: منبع تغذیه
محموله: مانیتور بیمار

توضیحات محصول

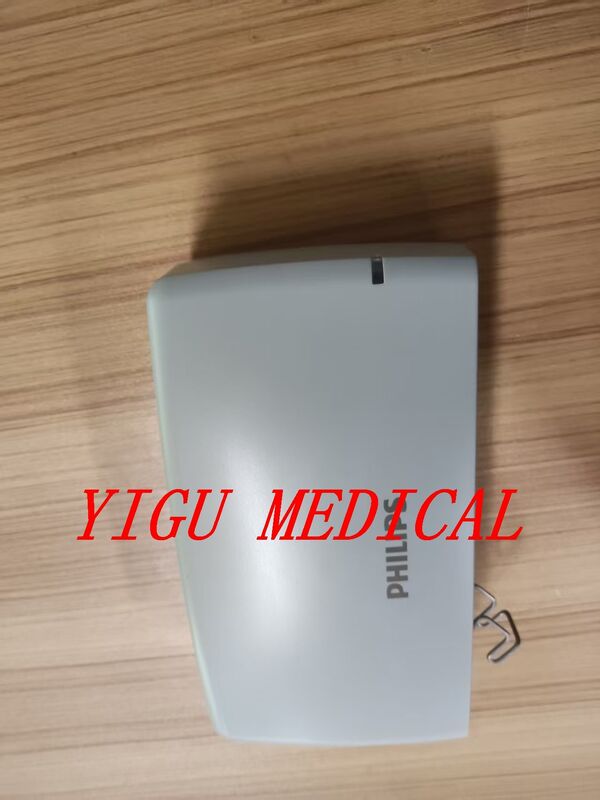

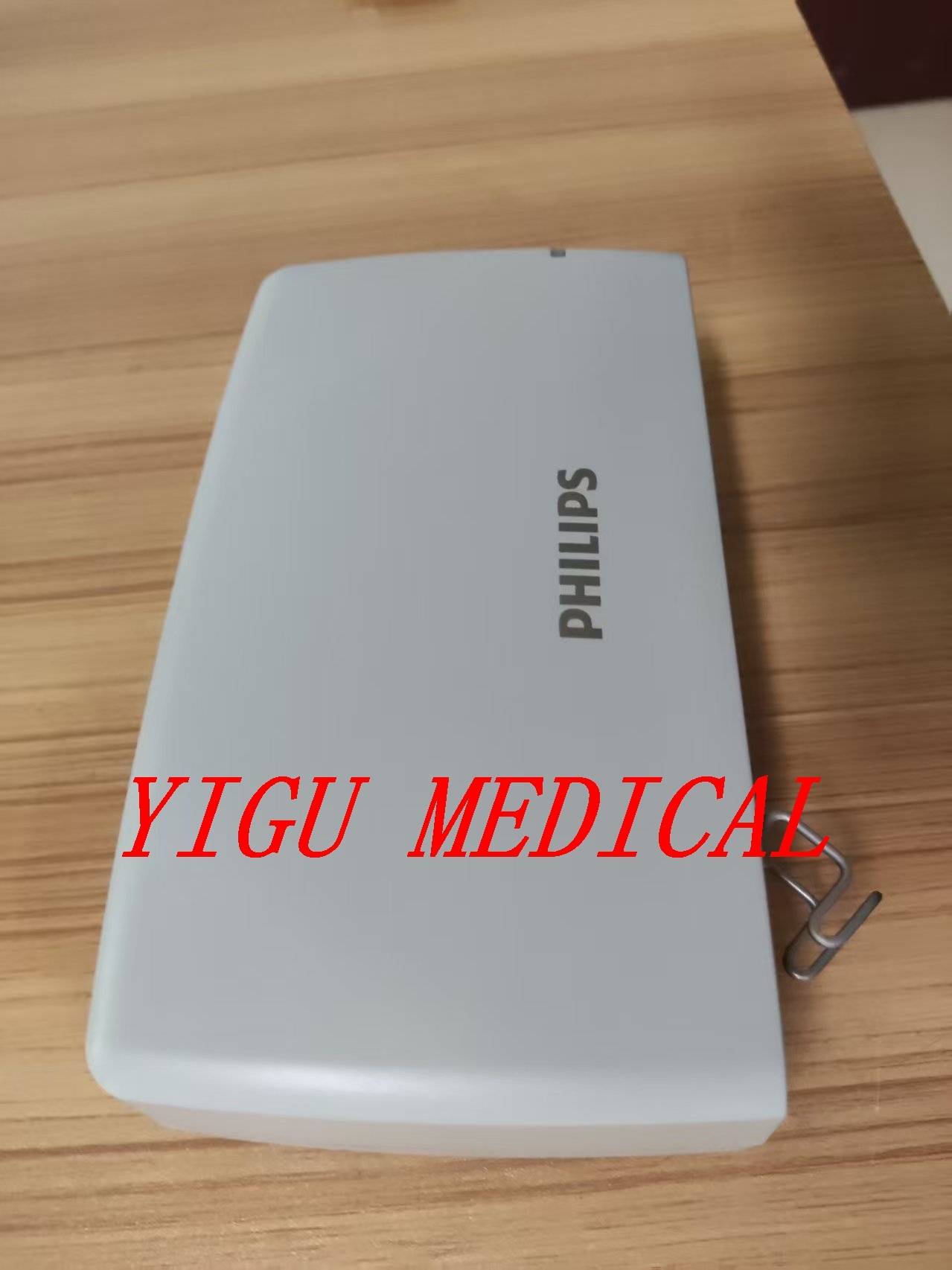

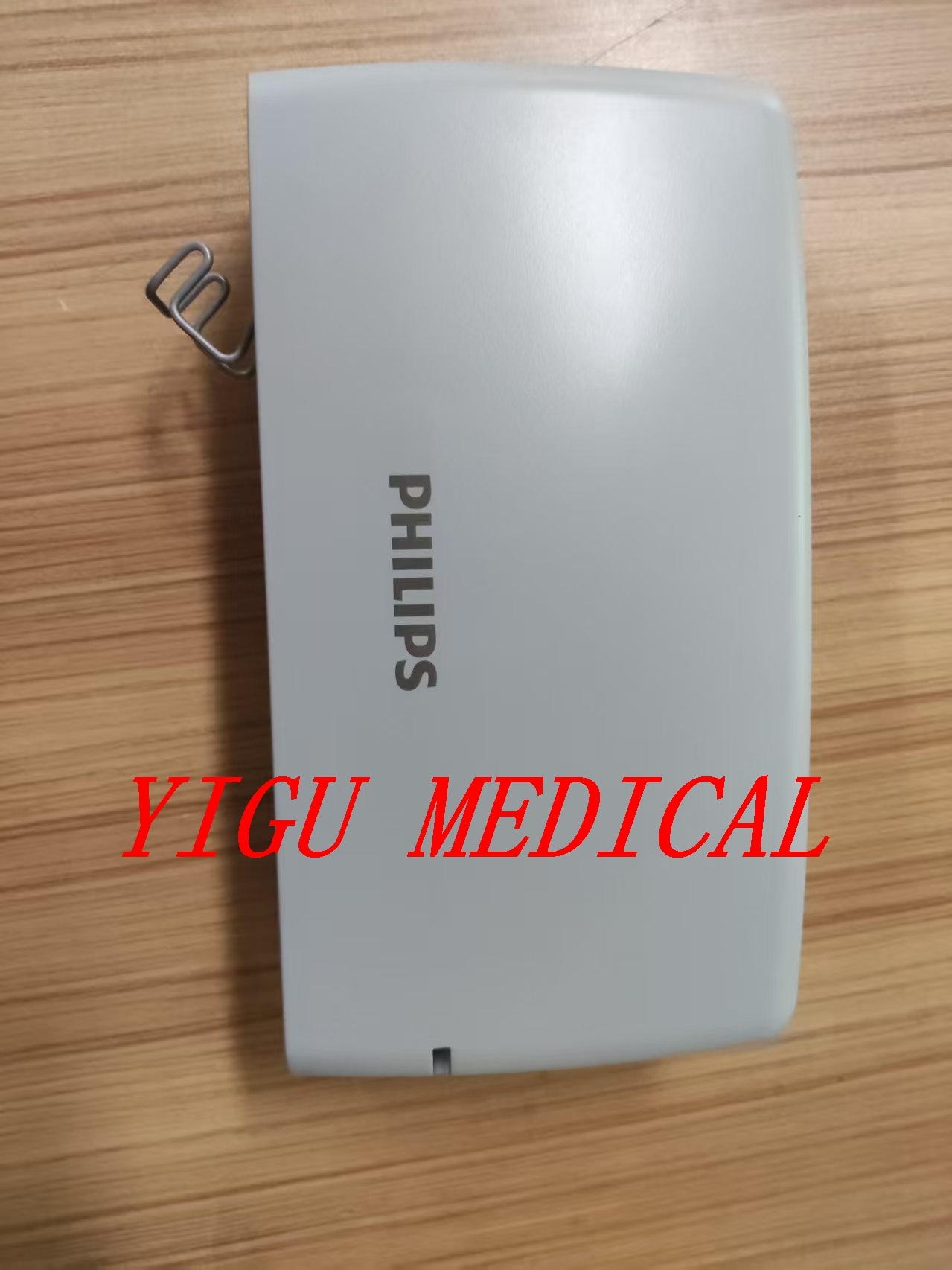

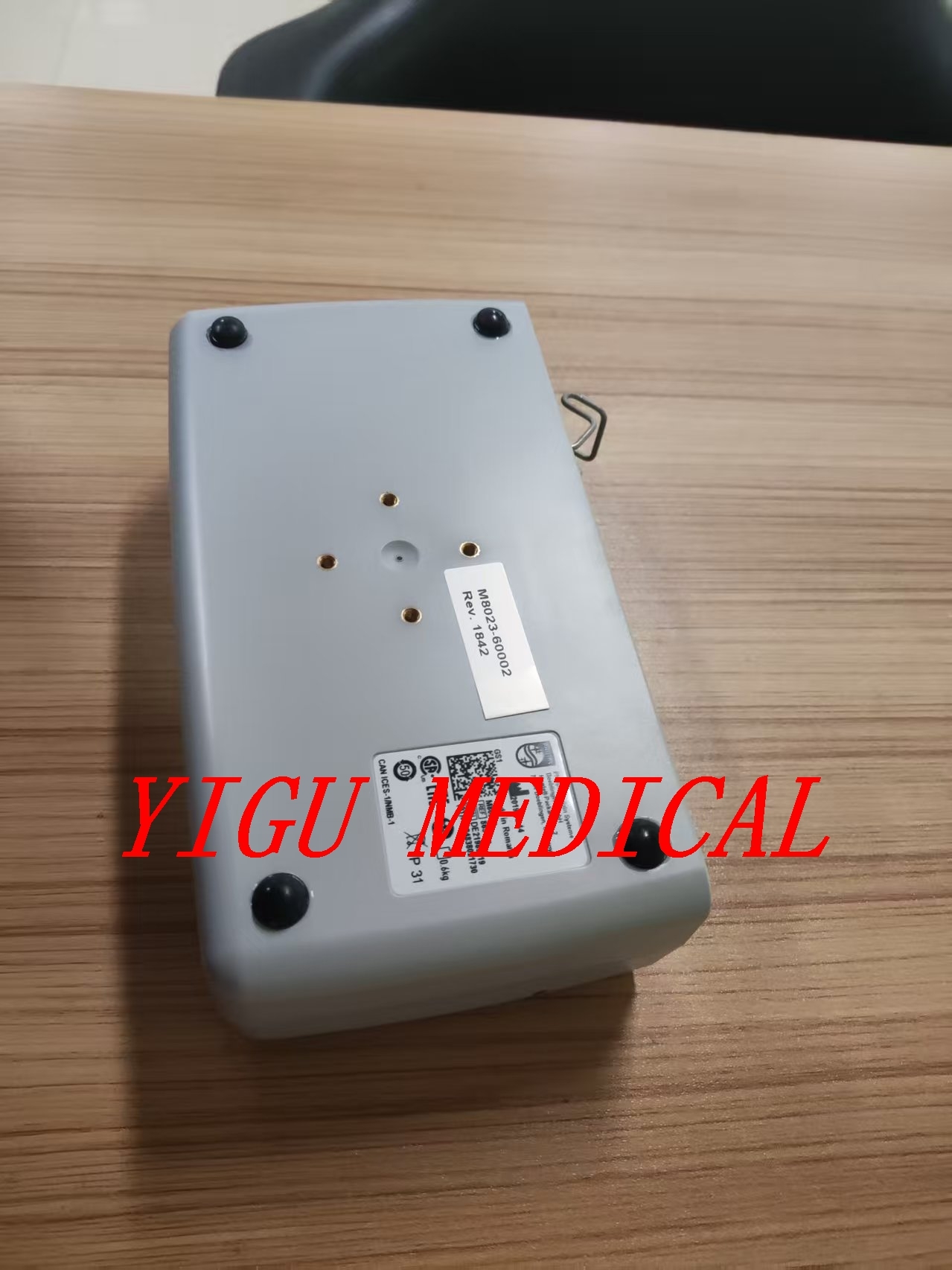

IntelliVue MP2 Monitor / X2 Module M8023A Power Supply Module REF 865122
The M8023A is a wide-range external power supply and network adapter that serves as the primary interface for connecting the MP2 monitor or X2 module to an AC mains power source. This optional accessory enables continuous operation and battery charging when the device is not connected to a host monitor.
Key Functions
Function Description
Device Operation Provides power to operate the MP2 or X2 from an AC power source
Battery Charging Automatically charges the monitor's internal rechargeable Lithium-Ion battery (M4607A) when connected
LAN Connection Provides a network connection for the device (when equipped with appropriate interface)
Technical Specifications
Parameter Specification
Input Voltage Range 100 V to 240 V AC (±10%)
Input Frequency 50/60 Hz (±5%)
Type Wide-range external power supply
Compatibility IntelliVue MP2, IntelliVue X2
Physical Connection
The M8023A connects to the MP2 or X2 via the Measurement Link (MSL) cable—the same type of cable used to connect the device to a host monitor such as the IntelliVue MP70. This design allows the device to be powered either by a host monitor or by the standalone M8023A power supply without requiring different cables.
Operational Features
  • Automatic Battery Charging: When the MP2 or X2 is connected to the M8023A power supply (or to a host monitor), the internal battery recharges automatically, with no user intervention required.
  • Hot-Swapping Capability: Users can switch between battery-powered and mains-powered (AC) operation without interrupting monitoring. This is particularly valuable during patient transport or when transitioning between bedside and ambulatory use.
  • Safety Requirement for Battery Compartment: For the X2 module specifically, a battery must remain inserted in the device even when running on external power via the M8023A. The battery seals the battery compartment, preventing ingress of fluids or foreign bodies. A severe yellow INOP ("!!INSERT BATTERY") will occur if the device is connected to AC mains without a battery fully inserted.
  • Enables MMS Extension Measurements: When using the MP2 monitor, measurements from an MMS (Multi-Measurement Module) extension are only available when the monitor is powered by the external power supply (M8023A) or the Battery Extension—not when running on the monitor's own battery power alone.
Clinical Utility
The M8023A power supply is essential for:
  • Continuous bedside monitoring in hospital wards and ICUs
  • Charging multiple devices between patient uses
  • Network connectivity for integration with information centers
  • Extended monitoring sessions where battery capacity alone is insufficient
IntelliVue MP2 Monitor / X2 Module M8023A Power Supply Module REF 865122 For New And Original 0 IntelliVue MP2 Monitor / X2 Module M8023A Power Supply Module REF 865122 For New And Original 1
